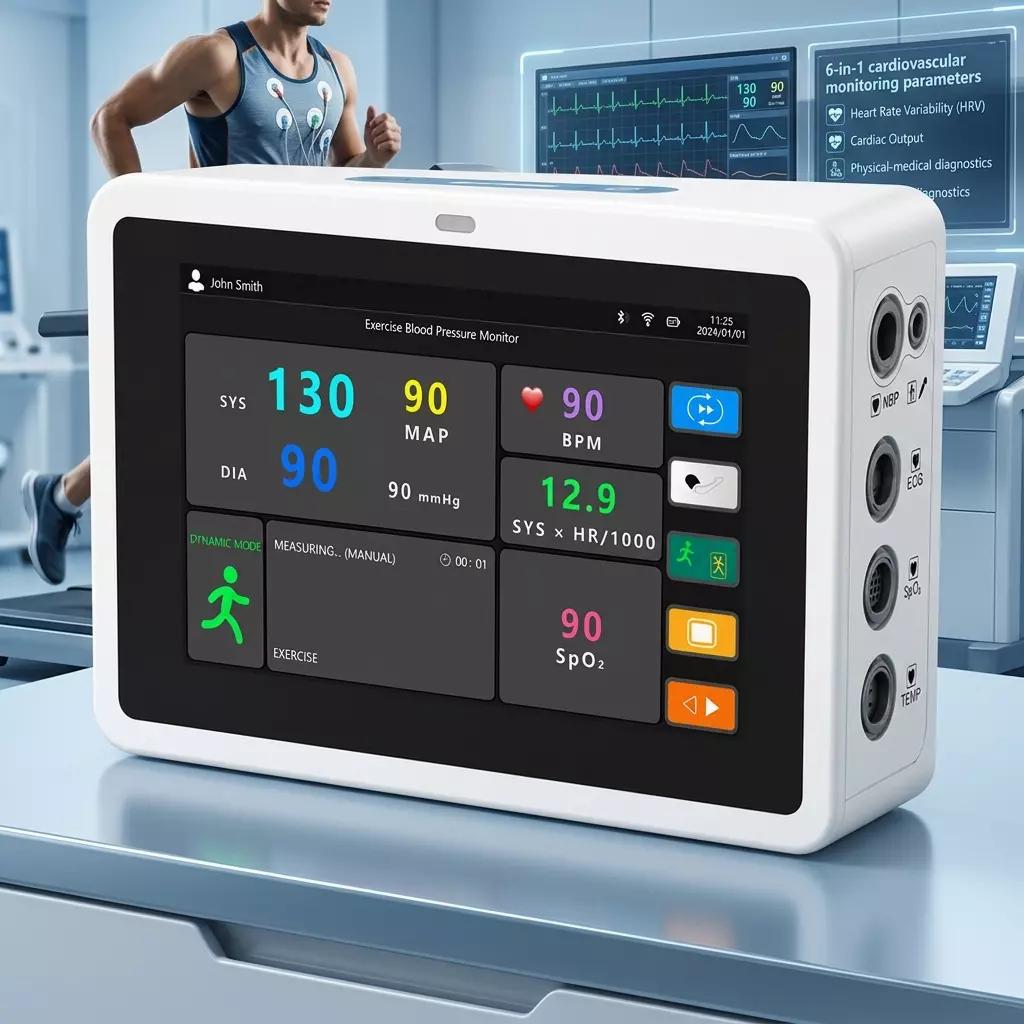

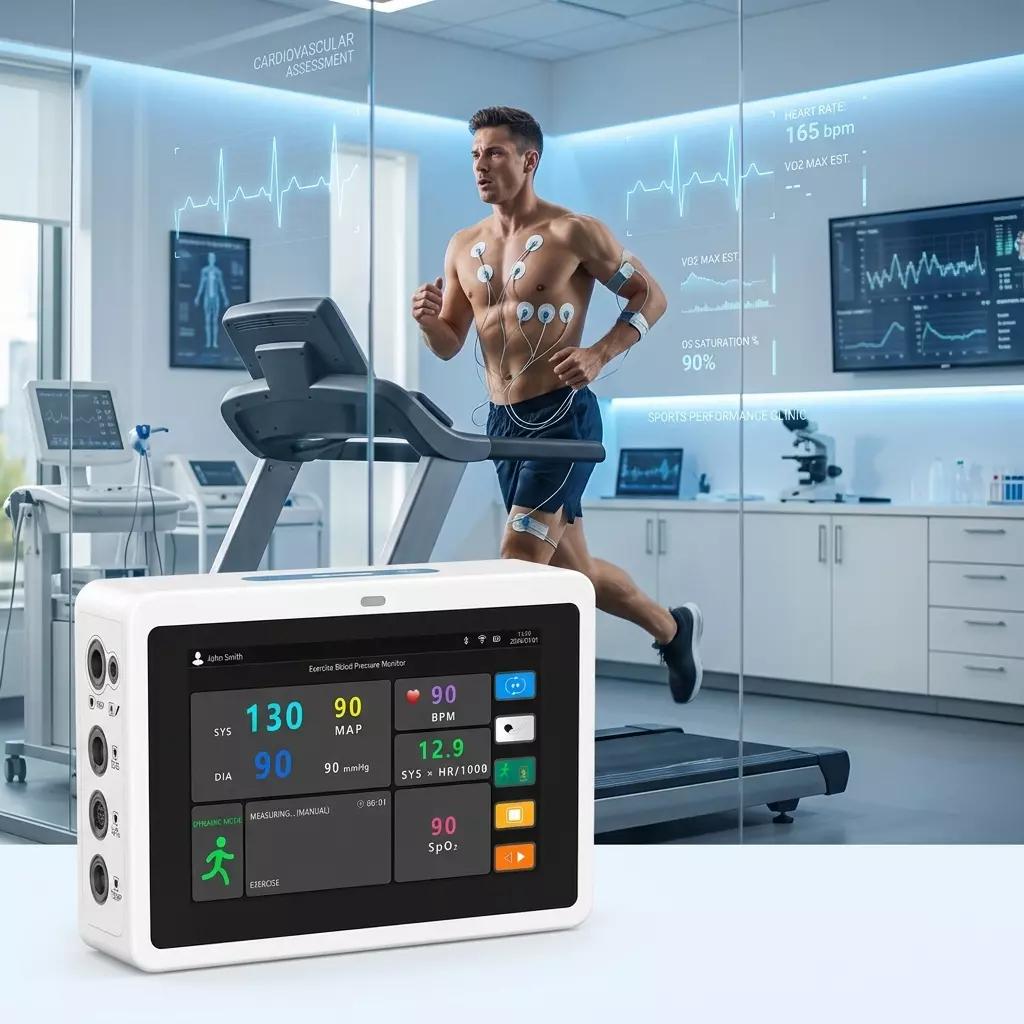

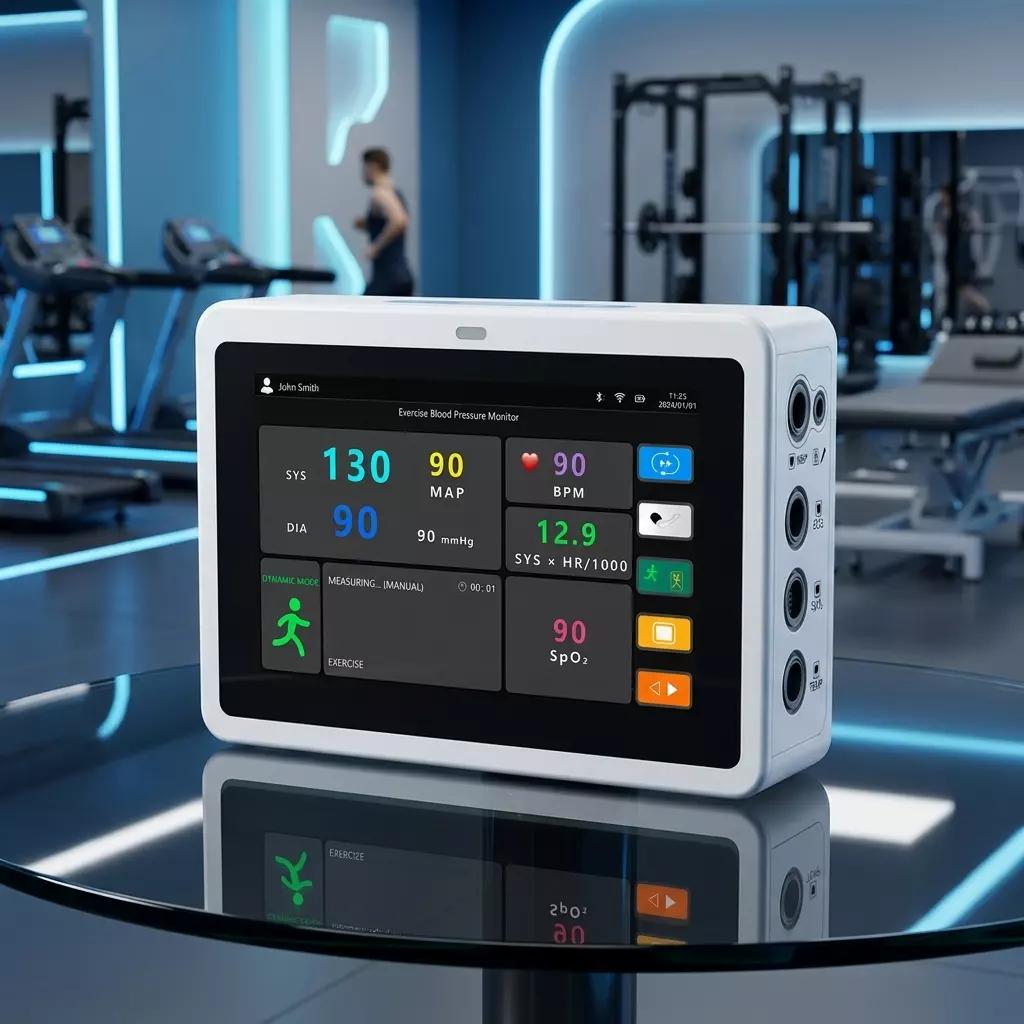

The E-BP01 Series is the only exercise blood pressure monitor that integrates 6 vital signparameters – Blood Pressure, ECG, SpO2, Respiratory Rate, Body Temperature, and Pulse Rate- into a single clinical-grade device. Where competitors require 3-4 separate instruments tomatch this clinical output, the E-BPO1 delivers everything from one unit at a significantly lower totalcost of ownership.
Technical Specifications – Blood Pressure
Motion mode- DKA (Korotkoff):SYS 40-270 mmHg / DIA 20-160 mmHg; Accuracy +3 mmHg
Non-motion mode – Oscillometric:SYS 40-260 mmHg / DIA 20-160 mmHg; Accuracy +3 mmHg
Static mode:0-297 mmHg; Accuracy +2 mmHg or +1% (better than competition)
Measurement modes:Manual / Auto (1-15 min intervals) / Continuous (<30 min, <7 readings)
Pre-inflation pressure:120-280 mmHg, adjustable in 10 mmHg steps
Cuff overpressure protection:Auto-deflate at 297+3 mmHg (adult mode)
ECG R-wave trigger (QRS sync):Supported – enables timed measurements synchronized with ECG
Technical Specifications – Multi-Parameter
ECG:3-lead (I, II, III) /5-lead (1-IIl, aVR, aVL, aVF, V); HR 15-200 bpm; CMRR >105 dB; pacemaker detection
SpO2:0-100%; Accuracy +2% (70-100%); PR 30-250 bpm; probe: red 660nm +IR 906nm
Respiratory rate:7-150 rpm; Accuracy +2 rpm; apnea alarm (10-40s delay configurable)
Temperature:25.0-50.0ยฐC; Accuracy +0.1ยฐC; supports ยฐC/ยฐF auto conversion
Connectivity:Bluetooth (E-BPO1-03/04) + Wi-Fi (E-BPO1-02/04/06) + RS232 + USB
Battery:3.7V / 4,400 mAh lithium; >180 min continuous; 0 90% charge in -~90 min
