Tdcs Device Stim Machine For Muscles & Tdcs Brain Stimulation

tdcs brain stimulation device infrared lights therapy early alzheimer’s, muscle stimulation

For product pricing, customization, or other inquiries:

Share to

Hot sale TDCS brain stimulation 810 photobiomodulation physical therapy for parkinson’s disease

Model	Structural form	Total number of channels	Operation mode
E-TDCS01	Handheld	Single group of 2 channels	Button

Application

This product is suitable for treating motor dysfunction, language cognitive impairment, and swallowing disorders caused by brain injury.

Rehabilitation of neurological and psychiatric diseases: movement disorders, balance disorders, cognitive disorders, speech and language disorders, visual perception disorders, disorders of consciousness, dystonia, etc., caused by brain injury, spinal cord injury, epilepsy, insomnia, depression, anxiety disorders, schizophrenia, stroke, aphasia, etc. Rehabilitation of children: children with cerebral palsy, autism, ADHD, etc. Pain rehabilitation: central pain, spinal pain, etc. Addiction treatment: quitting drugs, quitting smoking, quitting alcohol

Stimulus output mode :

2-channel output (anode/cathode): A two-channel stimulation method of one yin and one yang is adopted, and the output of the stimulation type is set by the control software, which acts on the cerebral cortex with weakly polarized direct current.

Electrode size specification

The length x width x thickness dimensions of the 2-channel electrode are: 60x45x1.4mm

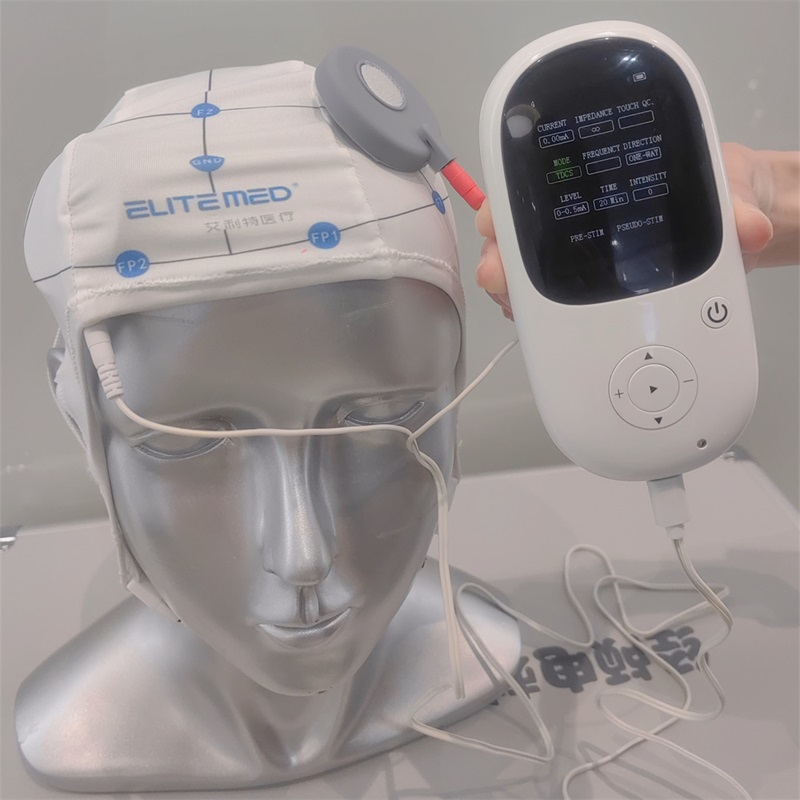

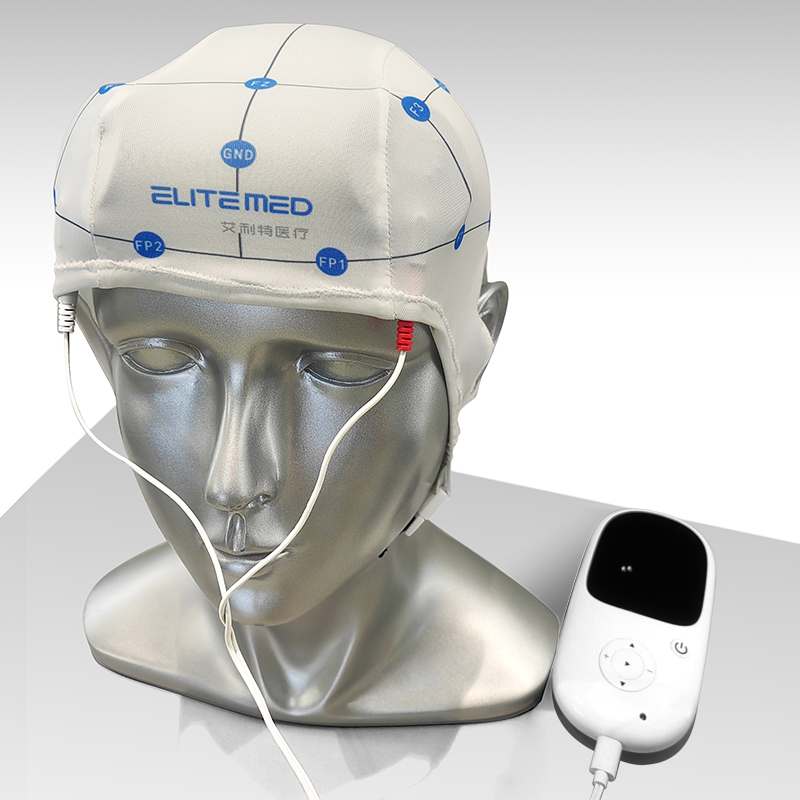

Transcranial Direct Current Stimulation Device Solution

Transcranial direct current stimulation (tDCS) is a non-invasive treatment that gently applies low-intensity electric currents to specific areas of the brain. Through carefully placed electrodes on the scalp, currents ranging from 0 to 2 milliamperes pass into the targeted brain region. This safe, painless technique enhances or reduces neural activity depending on electrode polarity. Doctors widely use TDCS to aid rehabilitation, treat cognitive impairment, and support recovery from various neurological conditions.

Transcranial Direct Current Stimulation Machine Structure and Description

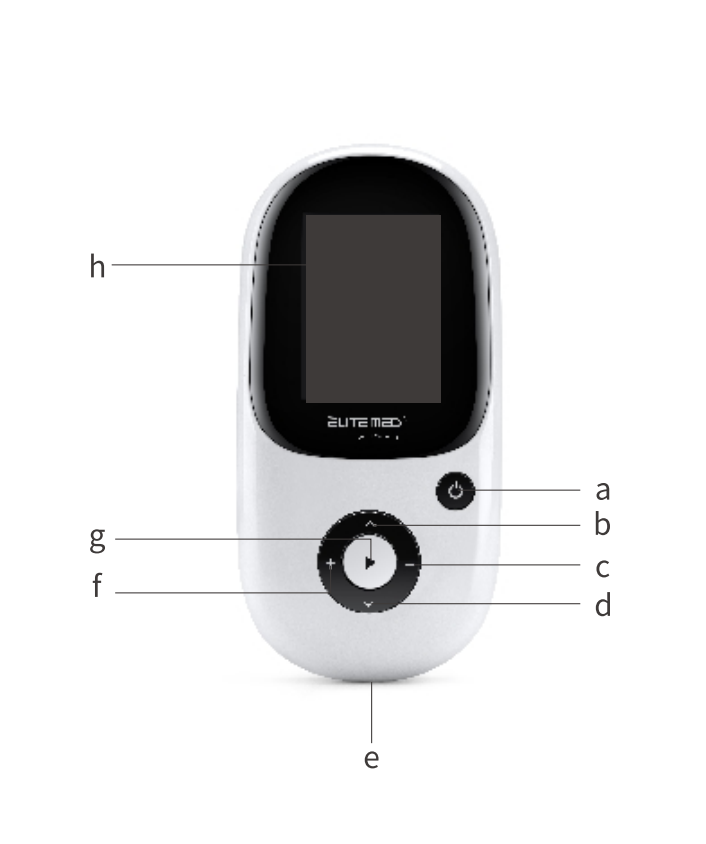

Structure and composition: It consists of a host, cable, 2 channels(electrotherapy line, electrode pads), battery.

a. Power switch;
b. Up button;
c. Right button;
d. Down button;
e. USB interface.
f. Left button;
g. Start/stop button:
h. LCD display;

Frequency and Pulse Introduction of Various Stimulation Working Modes

Stimulation Modes	Operating Frequency	Pulse Width
tDCS	no frequency	without pulse width
tACS	frequency range.0~200Hz, continuously adjustable, the error should not be greater than +2%	unidirectionalwave pulse width:0 ms~500 ms, bidirectional wave pulse width: 0 ms~330ms, the error should not be greaterthan +10%
tPCS	0 ~200Hz, continuously adjustable, the error should not be greater than + 2%	0ms~500 ms, the error should not be greater than + 10%
tRNS	0~200Hz	random from 0 ms to 500 ms
CES	frequency 0.1Hz, the error should not exceed +2%	four pulses of 250ms, 500ms, 750ms, and 1000ms, and the error should not be greater than +10%

Advantages of Our Transcranial Direct Current Stimulation Machine

When considering brain stimulation therapy, the choice of equipment can make a lot of difference. Our transcranial electrical stimulation device stands out for these reasons:

Benefits of Using Our Device

Consistent use of our transcranial electrical stimulation device often achieves notable therapeutic benefits:

Enhanced Neuroplasticity

Improved brain connectivity and functional adaptability in response to rehabilitation therapies.

Reduced Symptoms

Decreased intensity and frequency of neurological and psychiatric symptoms, improving quality of life.

Improved Cognitive Functions

Enhanced memory, concentration, speech, and decision-making capabilities.

Effective Pain Relief

Noticeable alleviation of chronic pain, improving patient comfort.

Supportive Rehabilitation

Accelerated recovery from strokes, brain injuries, and motor function disorders.

Transcranial Direct Current Stimulation Machine Operation Process

Using our transcranial electrical stimulation device involves straightforward, systematic steps:

Preparation:
Clean the patient’s skin thoroughly at electrode placement sites. Select and attach suitable electrodes (two-channel or five-channel) to the scalp, based on therapy requirements.
Setting Parameters:
Power on the transcranial direct current stimulation machine. Adjust current intensity within the safe range of 0 to 2 milliamperes. Choose electrode polarity (anode or cathode) based on the desired neural effect.
Initiating Treatment:
Once configured, begin treatment through simple buttons (handheld models) or an intuitive touchscreen (desktop and trolley models). Monitor patient comfort and adjust settings gently as necessary.
Completing the Session:
Typical treatments last from 20 to 30 minutes. After completing the session, gradually reduce current intensity until the device powers off. Remove electrodes carefully, clean skin, and document therapy session outcomes.

+86 13077818361

Applications of the Transcranial Electrical Stimulation Device

Our device’s broad applications cover various medical and rehabilitative uses:

Stroke and Brain Injury Rehabilitation

Helps patients regain speech, motor skills, balance, and cognition following strokes or traumatic brain injuries.

Mental Health Therapy

Supports therapies for depression, anxiety, schizophrenia, and insomnia by normalizing brain activity.

Chronic Pain Management

Assists patients suffering from spinal or central nervous system pain, easing chronic discomfort effectively.

Childhood Disorders

Beneficial for children facing autism spectrum disorder, attention deficit hyperactivity disorder (ADHD), or cerebral palsy, aiding brain development.

Addiction Recovery Support

Effective adjunct therapy aiding individuals in quitting drugs, alcohol, or smoking by easing withdrawal symptoms and cravings.

Why Choose Our Transcranial Electrical Stimulation Device?

Investing in a quality medical device has a direct impact on a person’s health. Our transcranial direct current stimulation machine provides a well-rounded solution for professional medical environments. Hospitals, rehabilitation centers, psychiatric practices, and neurological clinics trust our device due to its consistent performance and ease of operation. Choose our reliable, efficient, and safe stimulation system for comprehensive neurological and psychiatric care. As a result, you can always feel confident in your choice.

Please visit our website to learn more about our products and improve your patients’ rehabilitation journeys and neurological health with our transcranial direct current stimulation machine.
