Physical therapy equipments physiotherapy machine manufacturer factory direct device
Product Description:
A transcranial electrical stimulator is a non-invasive technology that uses a constant, low-intensity current (0-2mA) to modulate nerves. The current is delivered to the designated brain area through electrodes, and the intracranial current will increase or decrease the neuron cell’s activation. Excitability (depending on the polarity of the electrodes), increased or decreased excitability can cause changes in brain function that can be used to treat diseases or study brain function. It has been widely used in clinical work because of its advantages of being painless, non-invasive, easy to operate, safe, and reliable.
| Model | Structural form | Total number of channels | Operation mode |

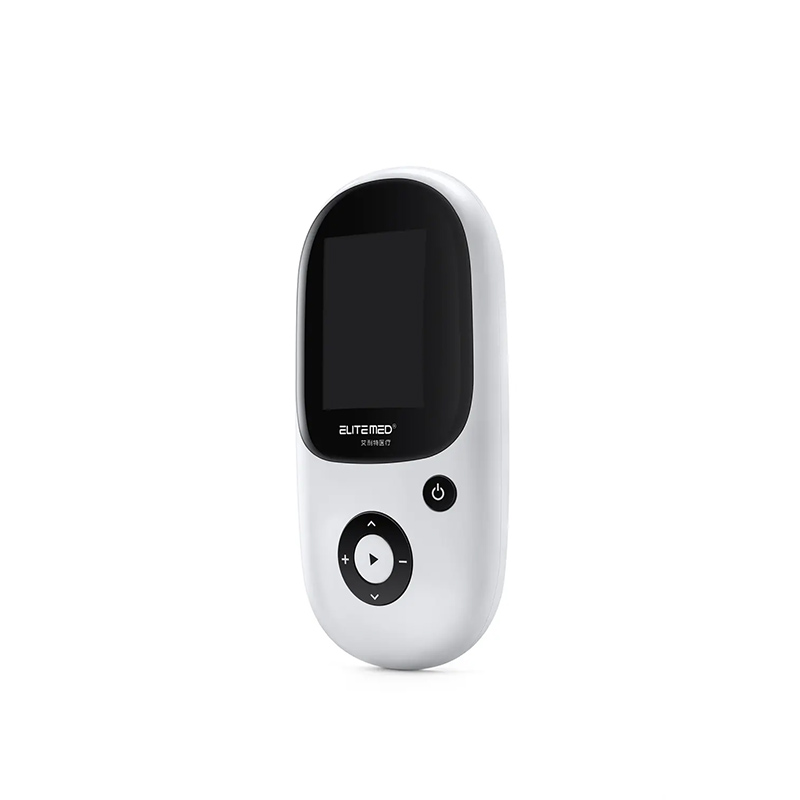

| E-TDCS01 | Handheld | Single group of 2 channels | Button |
| E-TDCS02 | Desktop | Dual groups of channels (with 2 channels or high precision 5 channels multiple stimulation modes) | Touch screen |

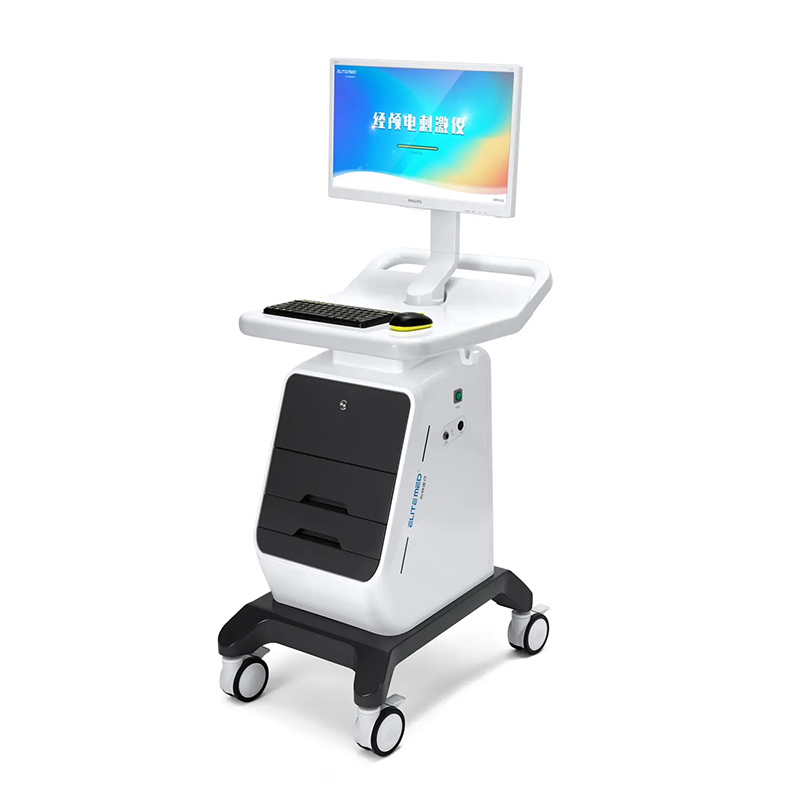

| E-TDCS03 | Trolley | Eight groups of channels (with 2-channel or high-precision 5-channel multiple stimulation modes) | Management system |
Application:
This product is suitable for the treatment of motor dysfunction, language cognitive impairment, and swallowing disorders caused by brain injury.
Rehabilitation of neurological and psychiatric diseases: movement disorders, balance disorders, cognitive disorders, speech and language disorders, visual perception disorders, disorders of consciousness, dystonia, etc. caused by brain injury, spinal cord injury, epilepsy, insomnia, depression, anxiety disorders, schizophrenia, stroke, aphasia, etc. Rehabilitation of children: children with cerebral palsy, autism, ADHD, etc. Pain rehabilitation: central pain, spinal pain, etc. Addiction treatment: quitting drugs, quitting smoking, quitting alcohol.
Features:
Multiple stimulus output modes.
Stimulus output mode 1) 2-channel output (anode/cathode): a two-channel stimulation method of one yin and one yang is adopted, and the output of the simulation type is set by the control software, which acts on the cerebral cortex with weakly polarized direct current. 2) 5-channel output (high-precision output: one yang and four yins or one yin and four yangs): It integrates the low-intensity, safety, and breakthrough high-precision target control technology of traditional tDCS, which greatly improves the focus of tDCS High-precision tDCS produces neuroplastic changes beyond other neuromodulation techniques, improving precision, stimulation effect, and duration of after-effects. Electrode size specification 1) The length x width x thickness dimensions of the 2-channel electrode are: 60x45x1.4mm 2) The outer diameter x inner diameter x thickness of the 5-channel electrode is: 10x2x2.2mm
