Latest Brain Stimulator TDCS Brain Stimulation Electrotherapy Deep Brain Stimulator TDCS Machine

Model	Structural form	Total number of channels	Operation mode

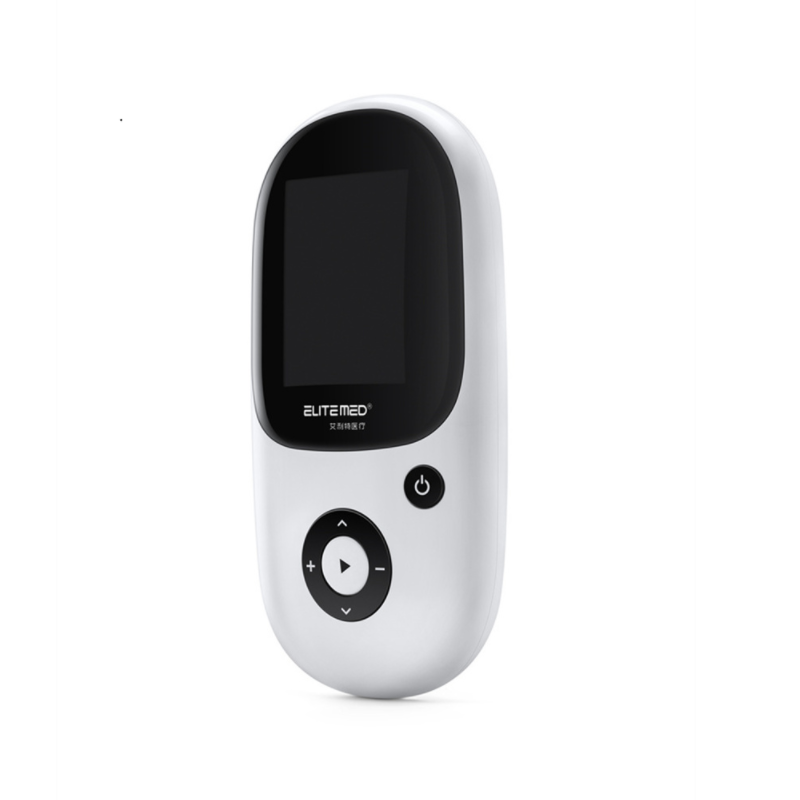

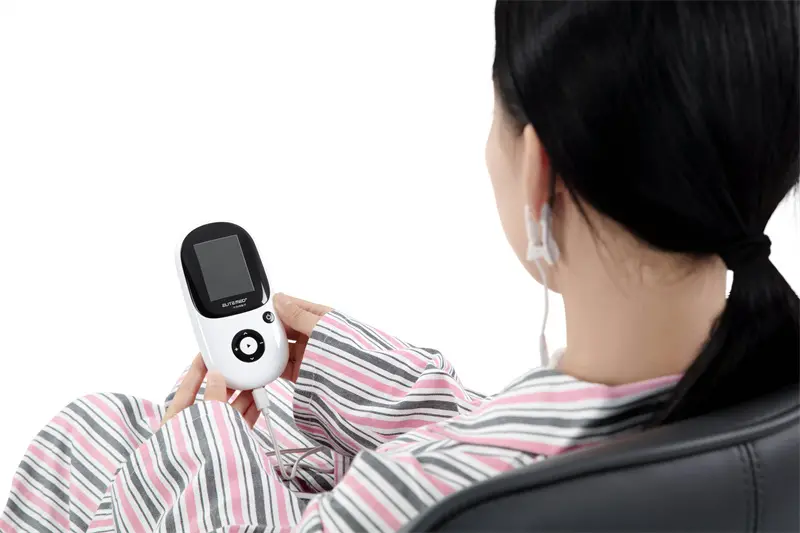

E-TDCS01	Handheld	Single group of 2 channels	Button

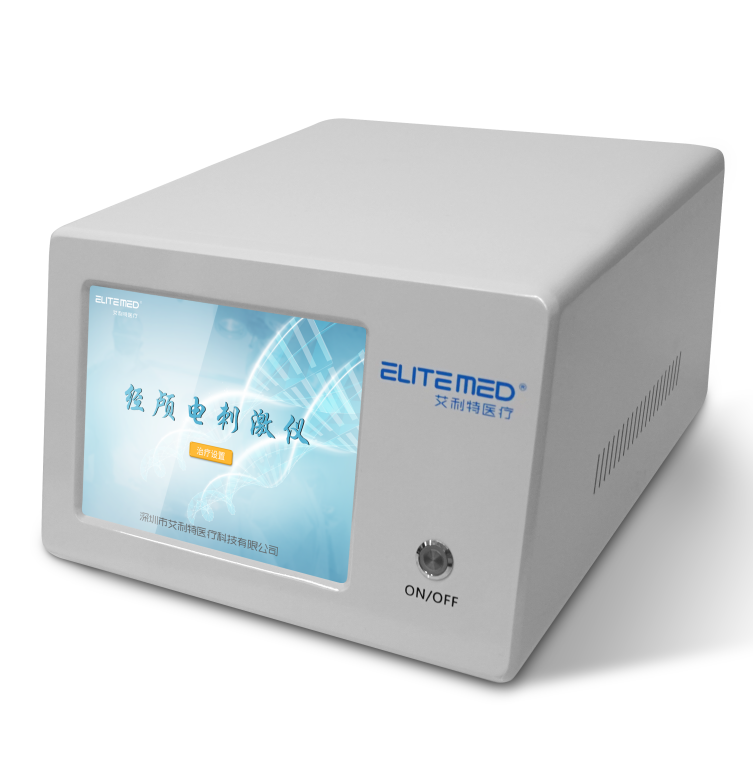

E-TDCS02	Desktop	Dual groups of channels (with 2 channels or high precision 5 channels, multiple stimulation modes)	Touch screen

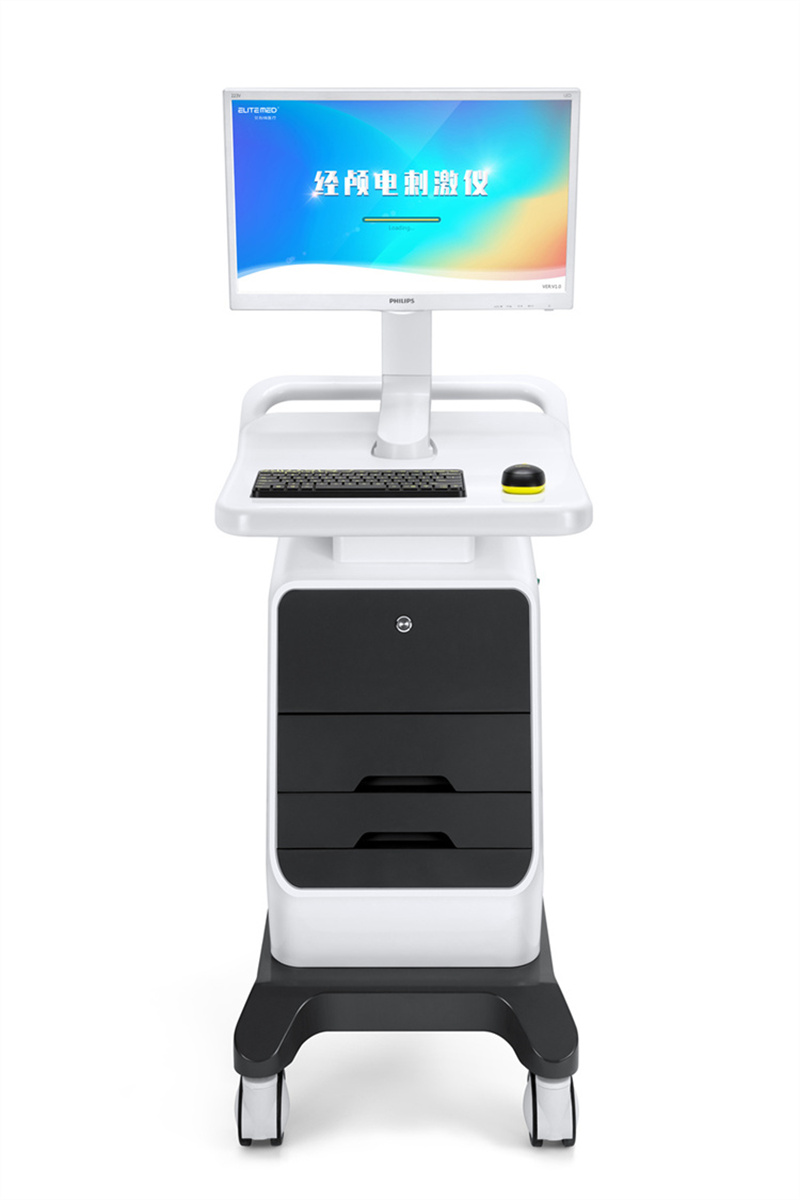

E-TDCS03	Trolley	Eight groups of channels (with 2-channel or high-precision 5-channel multiple stimulation modes)	Management system 19-inch monitor

Application

This product is suitable for treating motor dysfunction, language cognitive impairment, and swallowing disorders caused by brain injury.

Rehabilitation of neurological and psychiatric diseases: movement disorders, balance disorders, cognitive disorders, speech and language disorders, visual perception disorders, disorders of consciousness, dystonia, etc., caused by brain injury, spinal cord injury, epilepsy, insomnia, depression, anxiety disorders, schizophrenia, stroke, aphasia, etc.
Rehabilitation of children: children with cerebral palsy, autism, ADHD, etc.
Pain rehabilitation: central pain, spinal pain, etc.
Addiction treatment: quitting drugs, quitting smoking, quitting alcohol.

Stimulus output mode

1) 2-channel output (anode/cathode): A two-channel stimulation method of one yin and one yang is adopted, and the output of the stimulation type is set by the control software, which acts on the cerebral cortex with weakly polarized direct current.
2) 5-channel output (high-precision output: one yang and four yin or one yin and four yang): It integrates the low-intensity, safety, and breakthrough high-precision target control technology of traditional tDCS, greatly improving its focus. High-precision tDCS produces neuroplastic changes beyond other neuromodulation techniques, improving precision, stimulation effect, and duration of after-effects.

Electrode size specification ：

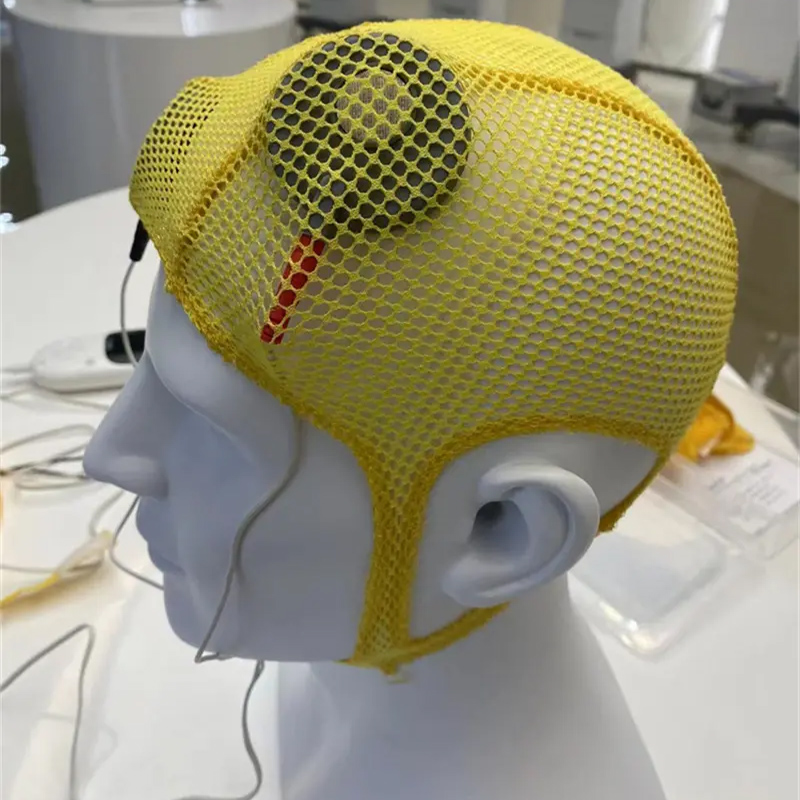

1) The length x width x thickness dimensions of the 2-channel electrode are: 60x45x1.4mm

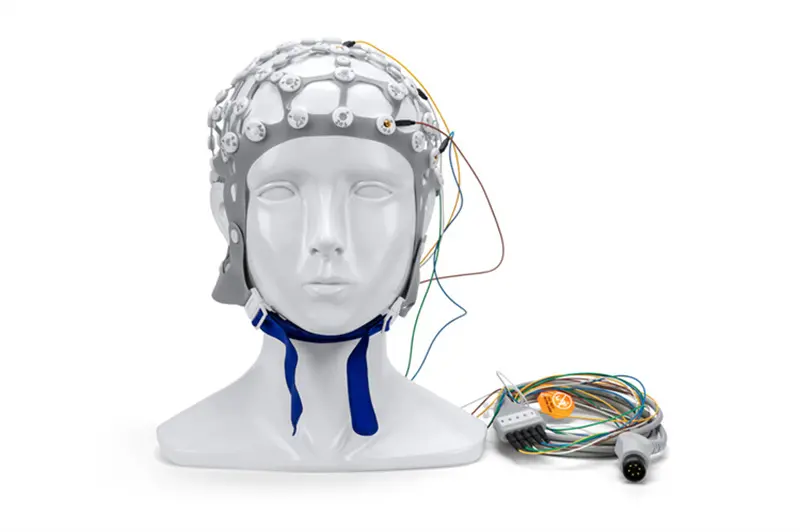

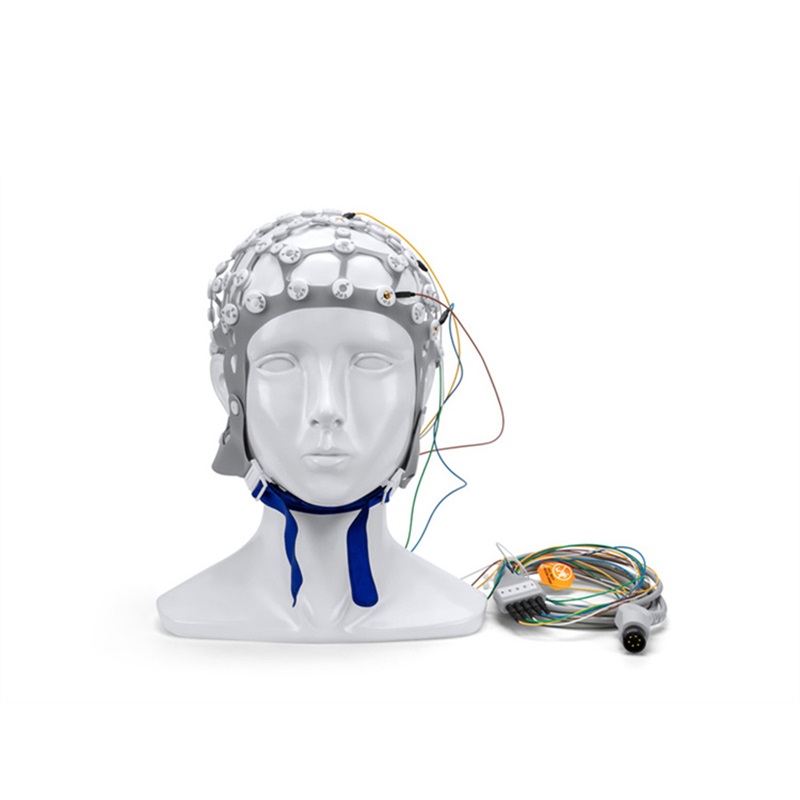

2) The outer diameter x inner diameter x thickness of the 5-channel electrode is: 10x2x2.2mm

Advanced TDCS Devices for Mental Well-Being

TDCS, or transcranial direct current stimulation, is a non-invasive brain stimulation technique that delivers a constant, low electrical current to specific areas of the brain through electrodes placed on the scalp. The goal is to modulate brain activity by either exciting or inhibiting neurons. This method has been studied for its potential to help improve memory, reduce depression and anxiety, support stroke recovery, and enhance attention. TDCS transcranial direct current stimulation works by influencing the brain’s natural plasticity, making it easier for neurons to form new connections and strengthen existing ones.

This technique includes a variety of stimulation methods, which can be divided into: tDCS, tACS, tRNS, tPCS, and CES.

Features of Our TDCS Devices

Our TDCS devices are designed with user safety and efficacy in mind. Key features include:

Advantages of TDCS: Transcranial Direct Current Stimulation

TDCS, transcranial direct current stimulation, offers several benefits:

Enhanced Neuroplasticity

TDCS can promote neuroplastic changes, aiding in the rehabilitation of neurological and psychiatric conditions.

Minimal Side Effects

Users typically experience few side effects, such as mild tingling or itching at the electrode site.

Non-Invasive Treatment

Unlike other brain stimulation techniques, TES does not require surgical procedures, reducing associated risks.

Cost-Effective Therapy

Compared to other neuromodulation techniques, TES is relatively affordable, making it accessible to a broader population.

Precise control

The output current intensity is four gears: 0-0.5mA, 0- 1mA, 0-1.5mA, 0- 2mA, and the adjustment range is 0-255 levels.

Operation Process of TDCS Devices

Operating our TDCS devices is straightforward:

Preparation: Ensure the device is fully charged. Clean the skin areas where electrodes will be placed to reduce resistance.

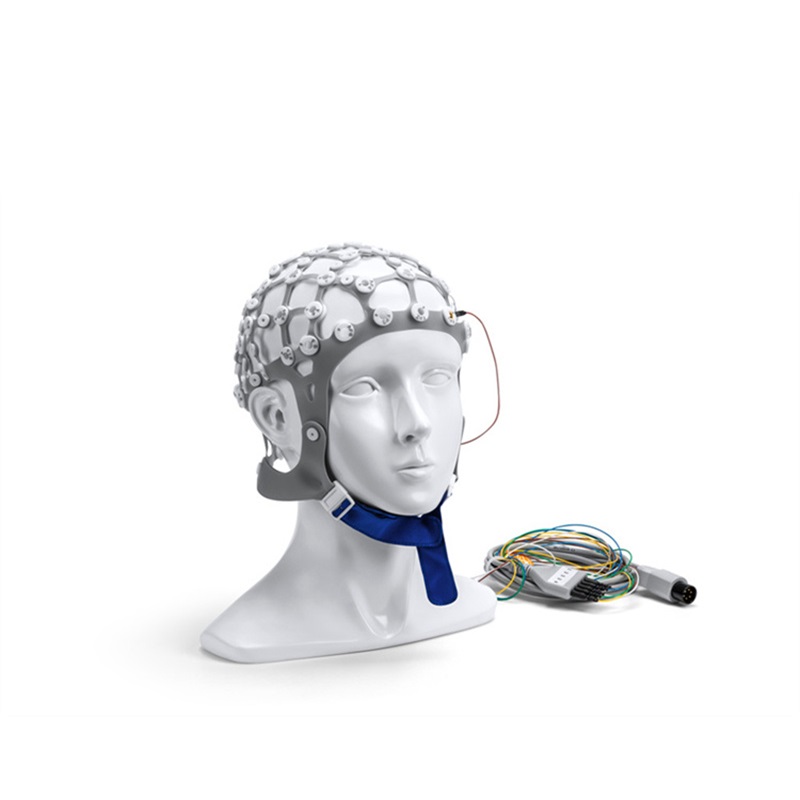

Electrode Placement: Attach the electrodes to the designated areas on the scalp as per the treatment protocol.
Device Settings: Power on the device. Select the desired stimulation mode (2-channel or 5-channel) and adjust the current intensity.
Stimulation Session: Initiate the session. The device will deliver a constant, low direct current for the set duration.
Completion: Once the session ends, the device will automatically shut off. Take off the electrodes and cleanse the skin.

+86 13077818361

Introduction to the types and functions of ELITEMED DCS equipment

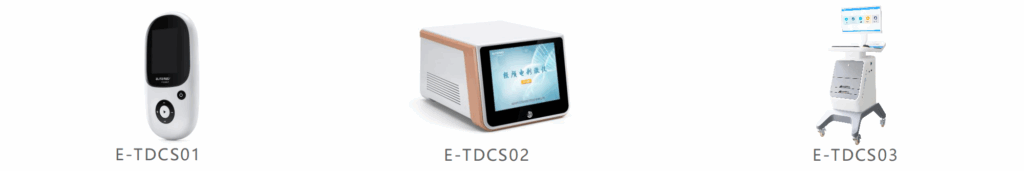

Model	Structure	Channels	Function
E-TDCS01	Handheld Button	※Single group of 2 channels ※Treat 1 patient	※5 treatment methods: tDCS/ tACS/ tPCS/ tRNS/ CES ※Mini & portable, easy to control for personal use
E-TDCS02	Desktop 10.4inch touch screen	※Dual groups of channels (with 2 channels or high precision 5 channels multiple stimulation modes) ※Treat up to 2 patients	※5 treatment methods: tDCS/ tACS/ tPCS/ tRNS/ CES ※With high-precision target technology, quickly locate treatment points ※With pre-stimulation and sham-stimulation functions ※More professional, used in clinics and hospitals
E-TDCS03	Trolley 19inch monitor	※Eight groups of channels (with 2-channel or high-precision 5-channel multiple stimulation modes) ※Treat up to 8 patients( with 4pcs TDCS01)	※5 treatment methods: tDCS/ tACS/ tPCS/ tRNS/ CES ※With pre-stimulation and sham-stimulation functions ※Export treatment data report ※With print data report function ※More professional, used in hospitals

Applications of TDCS Devices

Neurological Rehabilitation

Aid in recovery from stroke, traumatic brain injury, and spinal cord injuries by enhancing motor and cognitive functions.

Psychiatric Disorders

Assist in managing depression, anxiety, schizophrenia, and obsessive-compulsive disorder by modulating neural activity.

Pain Management

Alleviate chronic pain conditions, including fibromyalgia and neuropathic pain, through targeted brain stimulation.

Addiction Treatment

Support efforts in overcoming dependencies such as smoking, alcohol, and drug addiction by influencing craving-related neural pathways.

Cognitive Enhancement

Improve attention, memory, and learning capabilities in both healthy individuals and those with cognitive impairments.

Expected Outcomes of Using TDCS Devices

Regular use of TDCS devices can lead to:

Improved Mood: Reduction in depressive symptoms and enhanced emotional well-being.
Better Cognitive Function: Better memory retention, increased focus, and accelerated learning processes.
Pain Relief: Decreased intensity and frequency of chronic pain episodes.
Increased Neuroplasticity: Facilitation of brain adaptability, aiding in recovery from neurological injuries.

Why Choose ELITEMED TDCS Devices?

Our company stands out in the field of neuromodulation for several reasons:

Expertise and Innovation: Years of research and development have culminated in devices that are both effective and user-friendly.
Quality Assurance: Each device undergoes rigorous testing to ensure safety and reliability.
Comprehensive Support: We provide detailed user manuals, instructional videos, and customer support to assist users throughout their treatment journey.
Compliant: Our devices meet safety and efficacy standards, ensuring you receive a product you can trust.
Compliance with Standards: Our devices meet safety and efficacy standards, ensuring you receive a product you can trust.

By choosing our TES devices, you’re investing in a scientifically backed, non-invasive method to improve mental health and cognitive function.
